Cast Steel 460V 690V Multistage Centrifugal Water Pump 185m3/h High Speed

Name: Cast Steel 460V 690V Multistage Centrifugal Water Pump 185m3h High Speed
Brand: SANCHANG
Price: 1 USD

Quality Cast Steel 460V 690V Multistage Centrifugal Water Pump 185m3/h High Speed wholesale

Brand Name : SANCHANG

Model Number : MD155-67X5P

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 300pcs/month

Delivery Time : 30 working days

Packaging Details : Plywood Case

Flow Capacity : 100-185m3/h1

Delivery Head : 118-760m

Inlet/Outlet Dia. : 150mm/150mm

Working Pressure : <10.5MPa

Liquid Temperature : 0-120℃

Application : Clean Water, Sewage, Hot Water, Corrosive Liquid, Mining Water

Material : Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

Dirven By : Electric Motor / Diesel Engine

Voltage : 380V/400V/415V/440V/460V/690V/6kV/10kV

Speed : 2980/3560rpm

Seal : Gland Packing/Mechanical Seal

Frequency : 50/60Hz

Contact Now

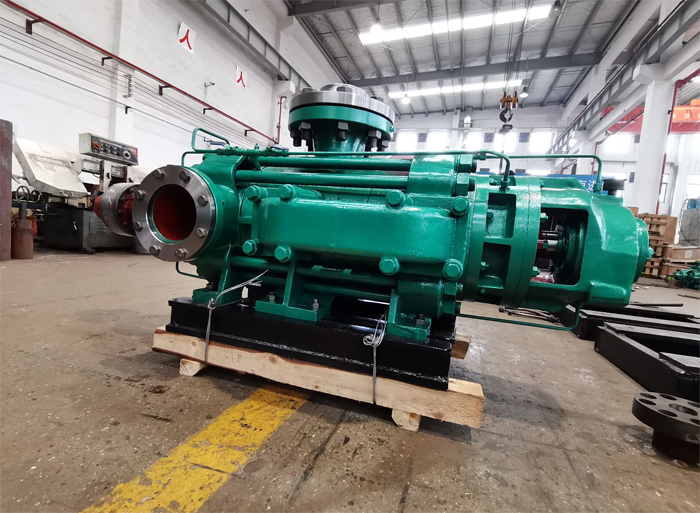

Horizontal Ring Section Self-Balancing Multistage Centrifugal Water Pump MD155-67X5P

Description

ZD series self-balancing multistage ring section centrifugal water pump is designed to remove the mechanical balance drum, balance disc, balance socket and similar part, but achieve the balancing function by reverse circulation water pipe.

Such external bypass piping is designed for water flowing into the end of the pump from the suction side, and then reversely flow back to the discharge section in the middle, which makes the water flowing from both sides of the discharge section.

It will balance the axial thrust caused by the high pressure impeller from both sides and escape the mechanical wears out as well as overloaded axial force of the traditional multistage pump, and ensure the stability and endurability of the pumpset.

Features and Benefits

* Greater reliability from radially split pressure casings, ensuring overall pump concentricity and rotor alignment.
* Improved service life and tolerance to changing conditions due to precision-cast diffusers that equalize radial loads and increase bearing, wear ring and seal life.
* Decreased maintenance costs and longer service intervals enabled by heavy-duty rotor with short bearing spans, which minimizes deflection.
* Precise hydraulic configuration made possible by the modular segmental ring diffuser design plus numerous options.

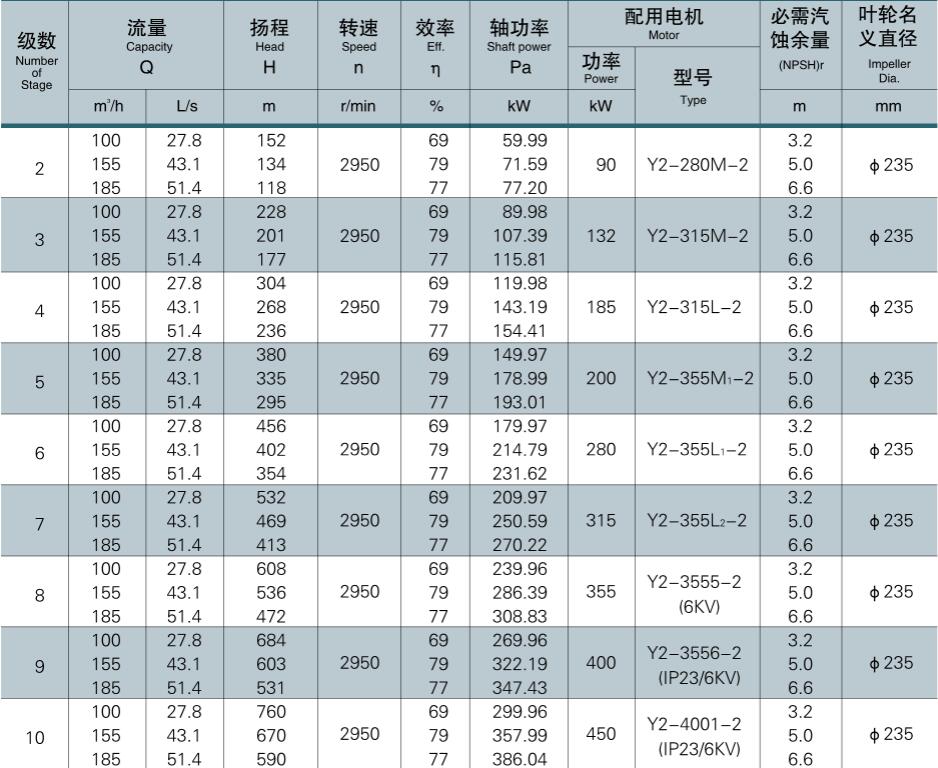

Parameters

Flow Capacity	100-185 m3/h	Delivery Head	118-760 m
Inlet/Outlet Dia.	150mm/150 mm	Working Pressure	≤ 10.5 MPa
Liquid Temperature	0 - 120 ℃	Driven By	Electric Motor / Diesel Engine
Seal Type	Mechanical seal / Gland packing	Liquid	Clean water or similar
Material of Construction	Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

Cast Steel 460V 690V Multistage Centrifugal Water Pump 185m3/h High Speed

Main Parts Configuration

The pump could transfer different kinds of liquid by customized wet parts, here followed our option of main parts:

* Pump Body: Cast Iron, Ductile Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

* Shaft: C.S45#, S.S420, 40Cr, 42CrMo, S.S630, Duplex S.S2205

* Shaft Sleeve: C.S45#, S.S420, S.S304, S.S316, S.S630, Duplex S.S2205

* Impeller: Cast Iron, Ductile Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205, Bronze

* Wearing Ring: Cast Iron, Ductile Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205, Bronze

* Bearing: China Make/NSK/SKF/Customized

* Seals: Mechanical Seals/Gland Packing Seals

We offer a variety of service activities:
* Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
* Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
* Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
* Training of our worldwide customers in the field of installation, operation and maintenance.

Applications

* boosting in General Industries of chemical process
* boiler water feeding
* Marine & offshore
* Power Plant
* Sea Water Desalination
* Petrochemical processing
* Clear and lightly contaminated liquids
* Commercial water supply, High building water supply
* Mining water discharge
* Supper long distance water transferring
