ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h

CHANGSHA SANCHANG PUMP CO., LTD.
Contact Now

ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h

  • 1
  • 2
  • 3

Brand Name : SANCHANG

Model Number : IHF200-150-400

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 300 pcs/month

Delivery Time : 30 working days

Packaging Details : Plywood Case

Flow Capacity : 250-480m3/h

Delivery Head : 48 - 52m

Inlet/Outlet Dia. : 200/150mm

Working Pressure : ≤ 0.8 MPa

Liquid Temperature : 0 - 120 ℃

Application : Clean Water, Sewage, Hot Water, Corrosive Liquid, Mining Water

Material : Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

Driven By : Electric Motor / Diesel Engine

Voltage : 380V/415V/440V/460V

Speed : 1480/1760rpm

Seal : Gland Packing/Mechanical Seal

Frequency : 50/60Hz

Contact Now

The IH series single stage end suction centrifugal pump is the most cost-effective solution for most every day pumping applications. End-suction pumps are available from dozens of manufacturers, in a wide range of materials of construction, and offered as both off-the-shelf and

custom-engineered products.

The highly efficient end suction pump is one of the simplest types of centrifugal pump that features motor slide rails and a back pull out design allowing for ready access and ease of maintenance. It’s a precision-made pump suitable for electric/diesel drives, designed to withhold temperatures of up to 105deg.C

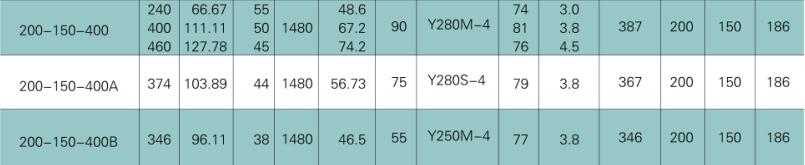

Main Performance Data
Flow: 250 - 480 m3/h
Delivery Head: 48 - 52m
Inlet/Outlet Dia.: 200/150mm
Working Pressure: ≤ 0.8Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃ - 120℃
ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h
ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h
Model Instruction
E.G.: IS/IR/IY/IH/IHF200-150-400A
IS: Single stage end suction pump (for clean water)
IR: Single stage end suction pump (for hot water)
IY: Single stage end suction pump (for oil liquid)
IH: Single stage end suction pump (for corrosive liquid)
200: Inlet diameter is 100mm
150: Outlet diameter is 80mm
400: Rate impeller diameter is 160mm
A(B,C....): Impeller code
Applications
* Water supply
* Drainage
* Irrigation
* Air conditioning
* Fire fighting
* Condensate circulation
* Cooling services
* General industries
* Water transfer & boosting
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name Clean Water Drink Water Hot Water Corrosive Liquid Acid Liquid
Pump Body Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 Cast Iron + F46
Shaft Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316 S.S420/S.S630
Shaft Sleeve Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316 F46
Impeller Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 Cast Iron + F46
Wearing Ring Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 F46
Bearing China Make/NSK/SKF
Seals Mechanical Seals

ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h

ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h

ISO9001 Stainless Steel 304 316 End Suction Centrifugal Pump 480m3/h
