480m3/h End Suction Close Coupled Pump SS304 SS316 Centrifugal Motor Pump

Product Categories
CHANGSHA SANCHANG PUMP CO., LTD.
Contact Now

480m3/h End Suction Close Coupled Pump SS304 SS316 Centrifugal Motor Pump

  • 1
  • 2
  • 3

Brand Name : SANCHANG

Model Number : IH200-150-400

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 300 pcs/month

Delivery Time : 30 working days

Packaging Details : Plywood Case

Flow Capacity : 250-480m3/h

Delivery Head : 48 - 52m

Inlet/Outlet Dia. : 200/150mm

Working Pressure : ≤ 0.8 MPa

Liquid Temperature : 0 - 120 ℃

Application : Clean Water, Sewage, Hot Water, Corrosive Liquid, Mining Water

Material : Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

Driven By : Electric Motor / Diesel Engine

Voltage : 380V/415V/440V/460V

Speed : 1480/1760rpm

Seal : Gland Packing/Mechanical Seal

Frequency : 50/60Hz

Contact Now

Horizontal End Suction Centrifugal Pump IH150-125-400 (S.S304/S.S316 )

The IH series single stage end suction centrifugal pump is the most cost-effective solution for most every day pumping applications. End-suction pumps are available from dozens of manufacturers, in a wide range of materials of construction, and offered as both off-the-shelf and

custom-engineered products.

The highly efficient end suction pump is one of the simplest types of centrifugal pump that features motor slide rails and a back pull out design allowing for ready access and ease of maintenance. It’s a precision-made pump suitable for electric/diesel drives, designed to withhold temperatures of up to 105 deg.C.

Liquid handling requirements have evolved over the years and have increased along with temperatures and pressures. Today’s installations demand sturdy but quiet, smooth running pumps with longer life cycles. These modern pumps with a clean, straightforward and updated design were developed with upgraded materials of construction and a simplified offering without limiting ranges and keeping maximum interchangeability in mind. These pumps not only feature shared hydraulics and premium materials as standard offering, but also offer industry leading durability.

All the wet part use S.S304 or S.S316, which ensure the corrosive-proof while the pump transferring corrosive liquid, it is wide used in drink water supply, jucie or liquor transferring, cooling water boosting, air conditioning system, petrochemical liquid handling, etc.

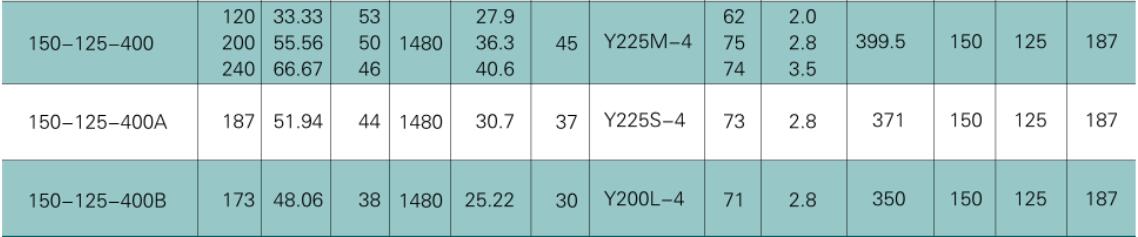

Main Performance Data
Flow: 120 - 240 m3/h
Delivery Head: 38 - 52m
Inlet/Outlet Dia.: 150/125mm
Working Pressure: ≤ 0.8Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃ - 120℃
480m3/h End Suction Close Coupled Pump SS304 SS316 Centrifugal Motor Pump
480m3/h End Suction Close Coupled Pump SS304 SS316 Centrifugal Motor Pump
Model Instruction
E.G.: IS/IR/IY/IH/IHF200-150-400A
IS: Single stage end suction pump (for clean water)
IR: Single stage end suction pump (for hot water)
IY: Single stage end suction pump (for oil liquid)
IH: Single stage end suction pump (for corrosive liquid)
200: Inlet diameter is 100mm
150: Outlet diameter is 80mm
400: Rate impeller diameter is 160mm
A(B,C....): Impeller code
Applications
* Water supply
* Drainage
* Irrigation
* Air conditioning
* Fire fighting
* Condensate circulation
* Cooling services
* General industries
* Water transfer & boosting
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name Clean Water Drink Water Hot Water Corrosive Liquid Acid Liquid
Pump Body Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 Cast Iron + F46
Shaft Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316 S.S420/S.S630
Shaft Sleeve Carbon Steel S.S304 S.S420/S.S304 S.S304/S.S316 F46
Impeller Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 Cast Iron + F46
Wearing Ring Cast Iron S.S304 Cast Steel/S.S304 S.S304/S.S316 F46
Bearing China Make/NSK/SKF
Seals Mechanical Seals

480m3/h End Suction Close Coupled Pump SS304 SS316 Centrifugal Motor Pump

480m3/h End Suction Close Coupled Pump SS304 SS316 Centrifugal Motor Pump
